How to Clone Readymade Size Chart Templates in WooCommerce

Cloning a readymade size chart template allows you to create a new editable version of a default template. This is useful when you want to customize the size chart title, measurements, layout, or style — without modifying the original default template.

This guide explains how to clone a ready-made size chart template and prepare it for product or category assignment.

Introduction

The Advanced Product Size Charts for WooCommerce plugin provides ready-made templates for shirts, jeans, dresses, shoes, and other apparel.

These default templates are not fully editable, especially the title.

If you want to:

• Change the chart title
• Modify the structure
• Apply your brand-specific sizing
• Create different versions of the same chart

You must clone the template.

Cloning creates a new, fully editable template while keeping the original template untouched.

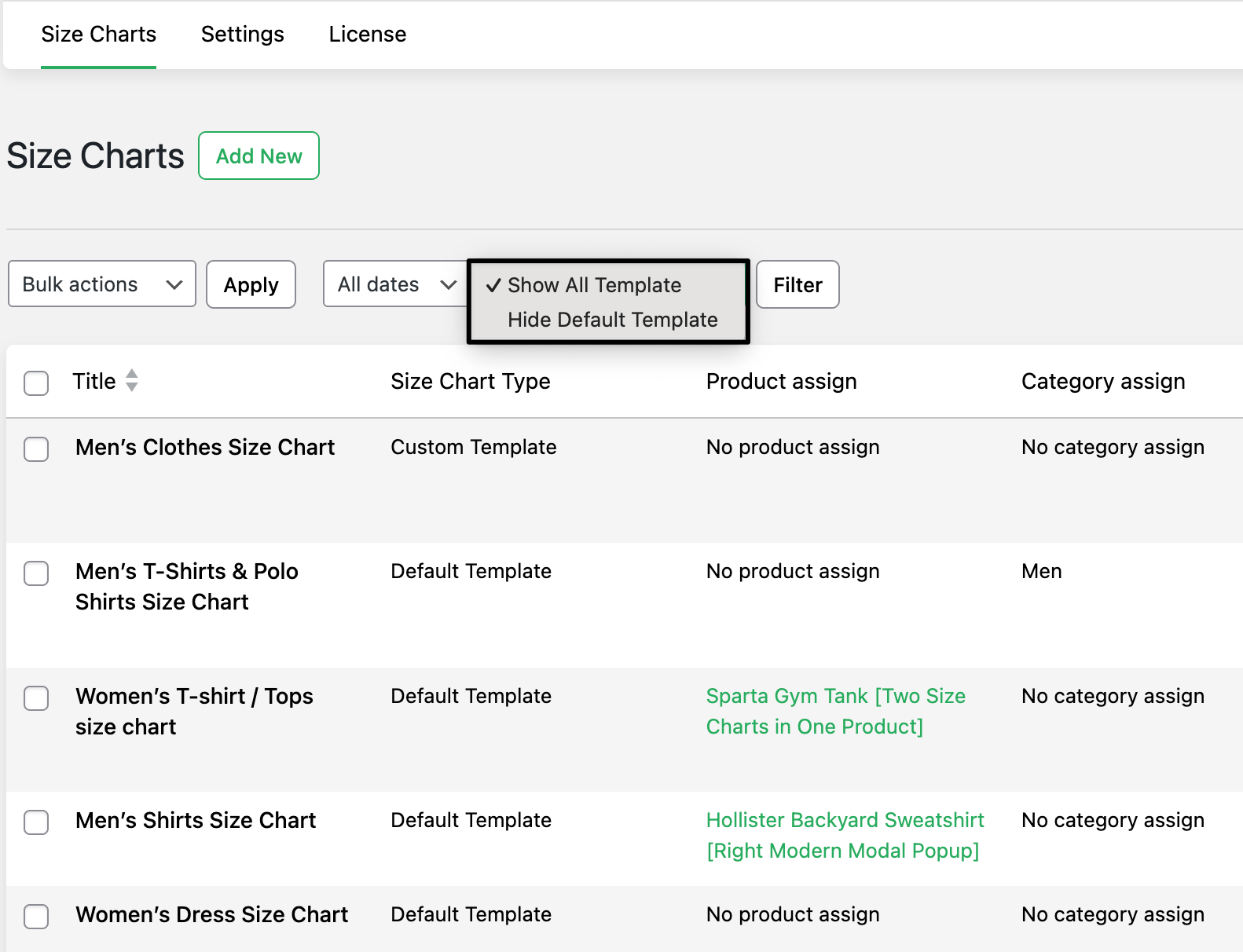

View the Readymade Size Chart Templates

1. Go to WordPress Dashboard

2. Navigate to Product Size Chart → Size Charts

   You will see a list of readymade size chart templates, such as:

   • Men’s T-Shirts Size Chart
   • Women’s Tops Size Chart
   • Jeans & Trousers Charts
   • Shoes Size Chart
   • Dresses Size Chart
   • Kidswear Charts

These are the default templates that come with the plugin.

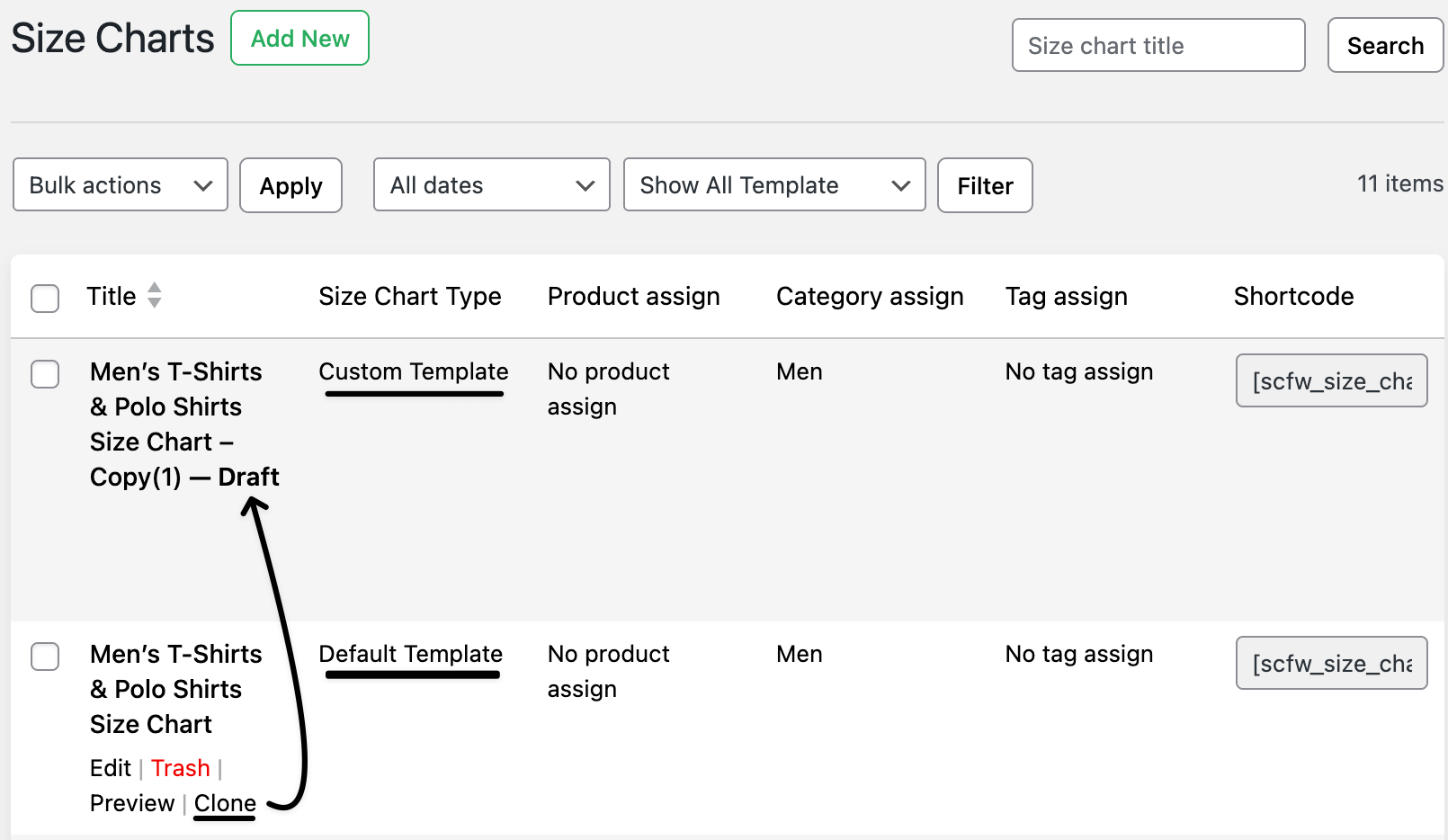

Click the “Clone” Option

To create an editable version of a template:

1. Hover over the readymade template you want to customize
2. Click the Clone link that appears below the title

The plugin will create a duplicate copy of the template.

The cloned template will:

• Have a new name (e.g., Men’s T-Shirt Size Chart – Copy)
• Be fully editable
• Appear in your list as a custom template

Edit the Cloned Template

Click on the cloned template to open the editor.

You can now modify:

✔ Title

Set your own chart name (e.g., “Premium Cotton T-Shirt Size Guide”)

✔ Description

Add instructions, measurement tips, etc.

✔ Size Chart Table

• Add/remove rows
• Add/remove columns
• Update measurement values
• Insert multiple tables using advanced formatting
• Change table design (custom style)

✔ Display Style

Choose:

• Popup
• Inline
• Tabbed chart

✔ Display Position

Choose where the size chart appears on the product page.

✔ Assign to Products or Categories

Apply the cloned chart to specific items.

Every part of the template is now customizable.

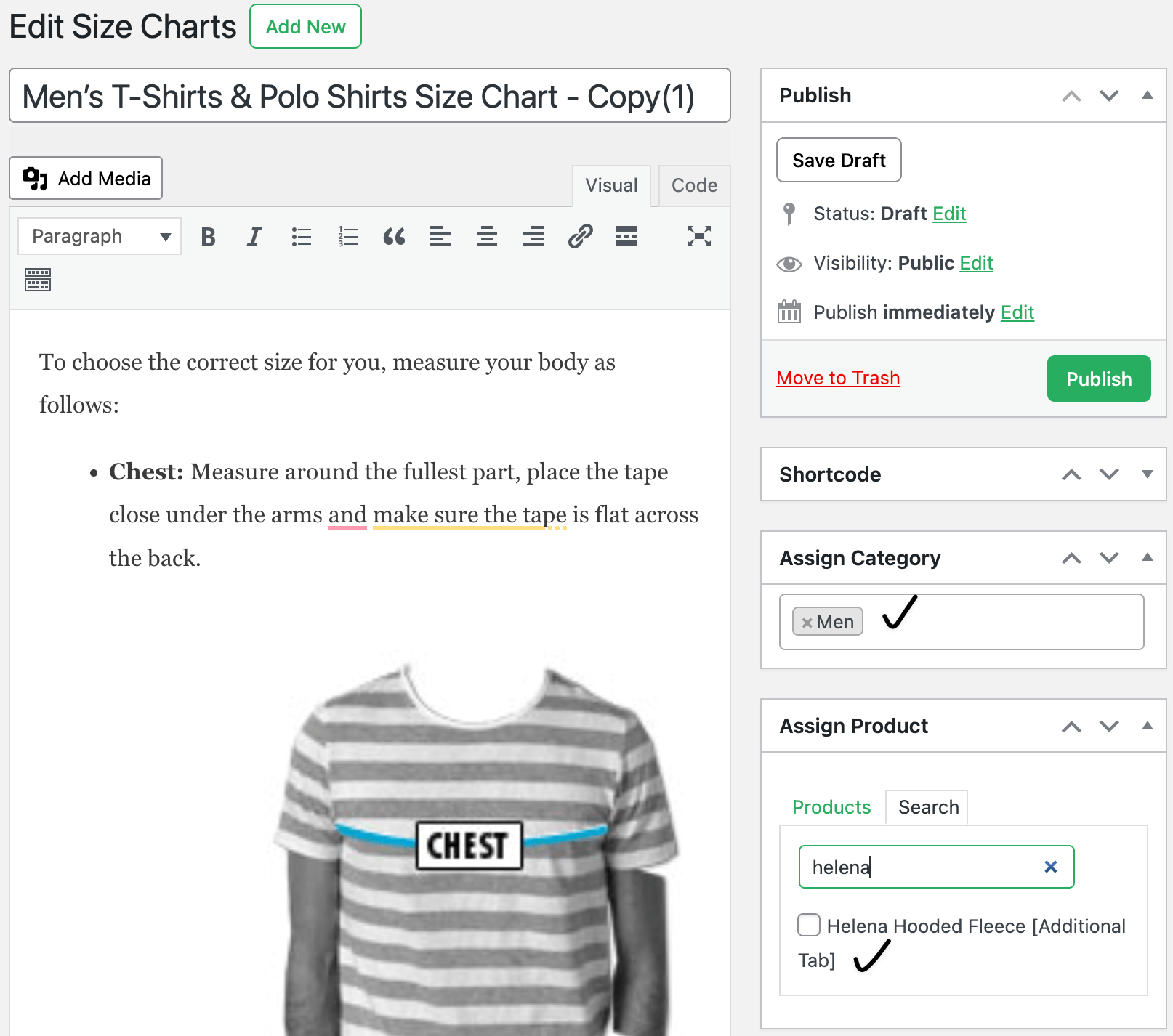

Assign the Cloned Chart to Products or Categories

Once you finish editing:

👉 Assign to Products

1. Edit any WooCommerce product
2. Scroll to the Size Chart section
3. Select your cloned template from the dropdown
4. Update the product

👉 Assign to Categories

In the cloned template editor:

1. Find the Assign Category panel
2. Select one or multiple categories
3. Save the template

Now all products in those categories will display the cloned size chart.

Benefits of Cloning Size Chart Templates

✔ Customize anything

Default templates limit title and structural edits — clones do not.

✔ Keep original templates intact

Useful for testing multiple versions.

✔ Faster workflow

Use default templates as a foundation instead of starting from scratch.

✔ Create product-specific or brand-specific versions

Perfect for multi-brand stores or unique sizing systems.

✔ Assign unique charts to products and categories

Cloned charts behave like any other custom-size chart.

Conclusion

Cloning a readymade size chart template is the best way to create personalized, editable, and flexible charts for your WooCommerce store.

With just one click, you can build a fully customizable version of any default template and assign it anywhere you need.

This keeps your store organized, speeds up workflow, and ensures customers always see accurate sizing information.

FAQs

1. Can I edit the original default template?

You can edit measurement values, but the title cannot be changed. Use Clone to modify everything.

2. Can I clone a template more than once?

Yes, you can create unlimited cloned versions.

3. Does cloning affect the default template list?

No. The original stays intact and unchanged.

4. Can I delete a default template after cloning it?

No, default templates cannot be deleted — only hidden.

5. Can a cloned template be assigned to multiple products?

Yes, assign it to individual products or entire categories.
