Configure the size chart global settings in WooCommerce

The Advanced Product Size Charts for WooCommerce plugin allows you to manage global styling, labels, display behavior, and user permissions for all size charts from one place.

These global settings help you:

• Maintain design consistency
• Set default behavior across all charts
• Control access for store managers
• Customize the pop-up link style

This guide walks you through each available option.

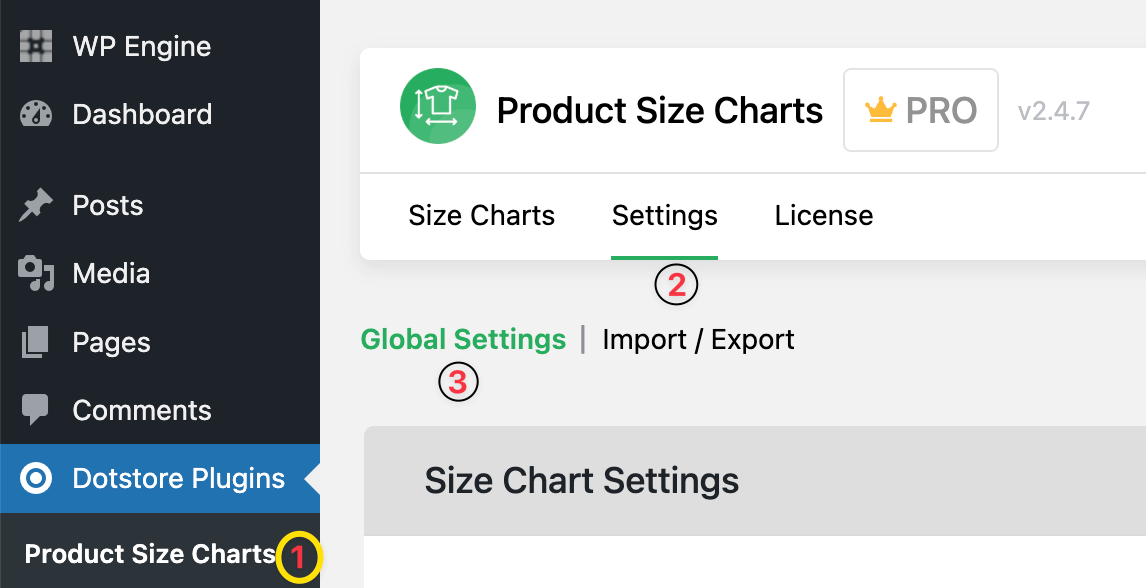

Access Global Settings

To manage size chart configurations globally:

1. Go to WordPress Dashboard
2. Navigate to Product Size Chart → Settings
3. Click on the Global Settings tab

Here you will find four sections:

• General Settings
• Global Settings
• Pop-Up Settings
• Size Chart User Permissions

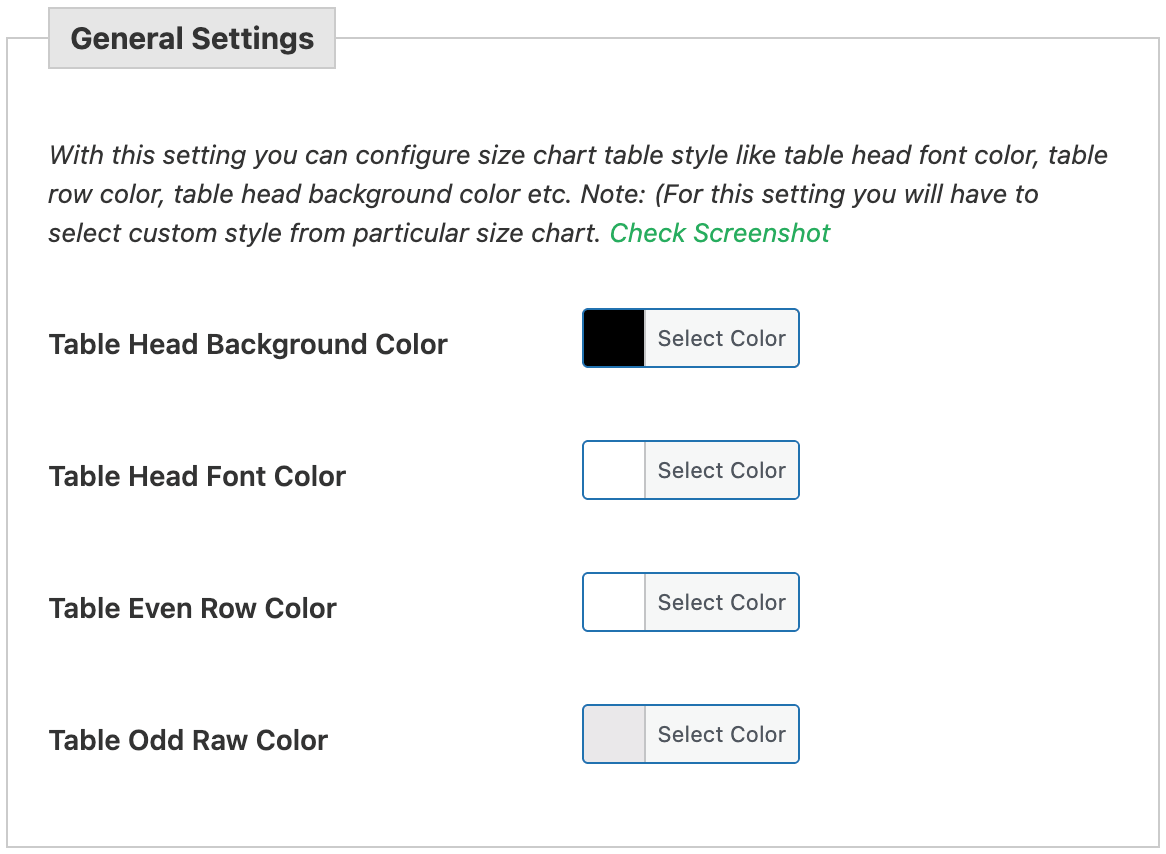

Configure General Settings

The General Settings section allows you to customize the default styling of the size chart table.

You can configure:

• Table header font color
• Table row text color
• Table row background color
• Table header background color
• Border color and thickness
• Custom table styling elements

Important Note

These styling options will apply only when you select

“Custom Style” inside the individual size chart editor.

(You will add the screenshot showing the “Custom Style” requirement.)

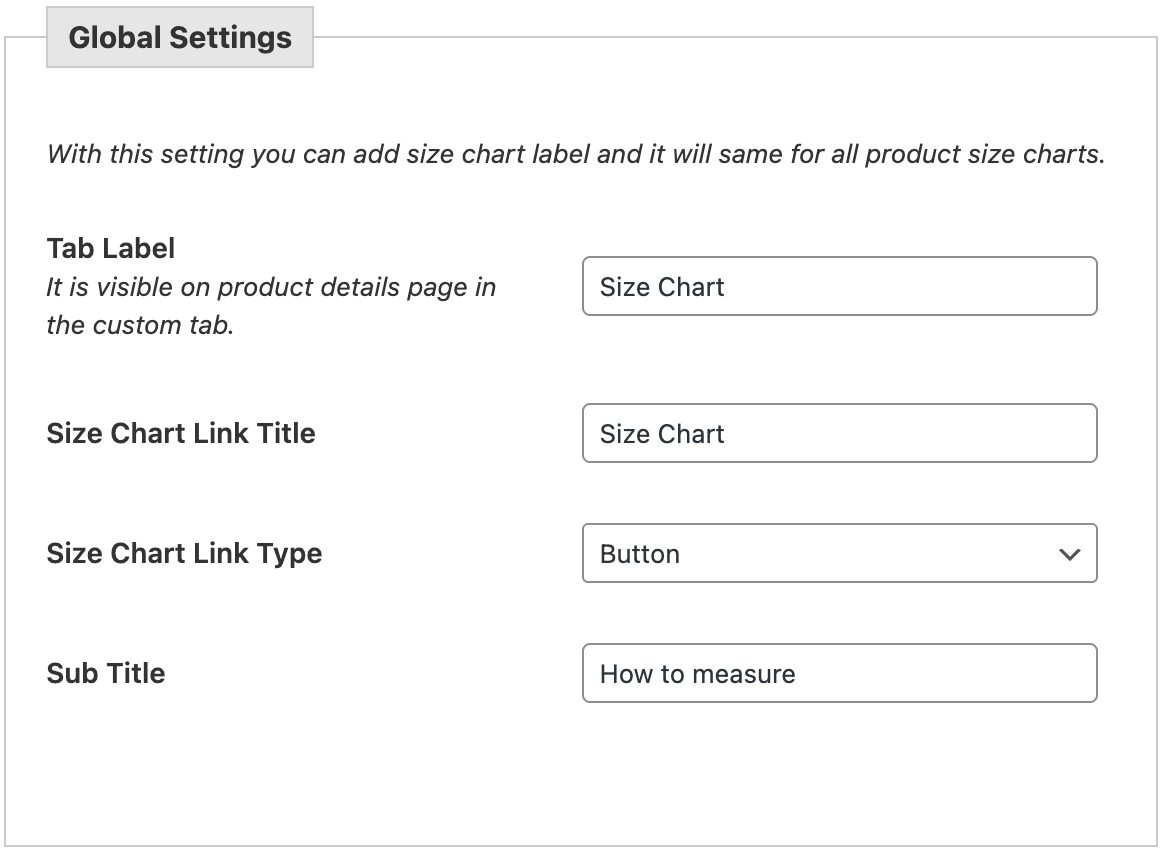

Configure Global Settings

The Global Settings section helps you maintain consistent labeling across your store.

You can:

• Set the default size chart label that appears on all size charts

  (Example: “Size Chart”, “View Size Guide”, “Sizing Info”, etc.)

This label will automatically apply to every product using the size chart unless overridden manually.

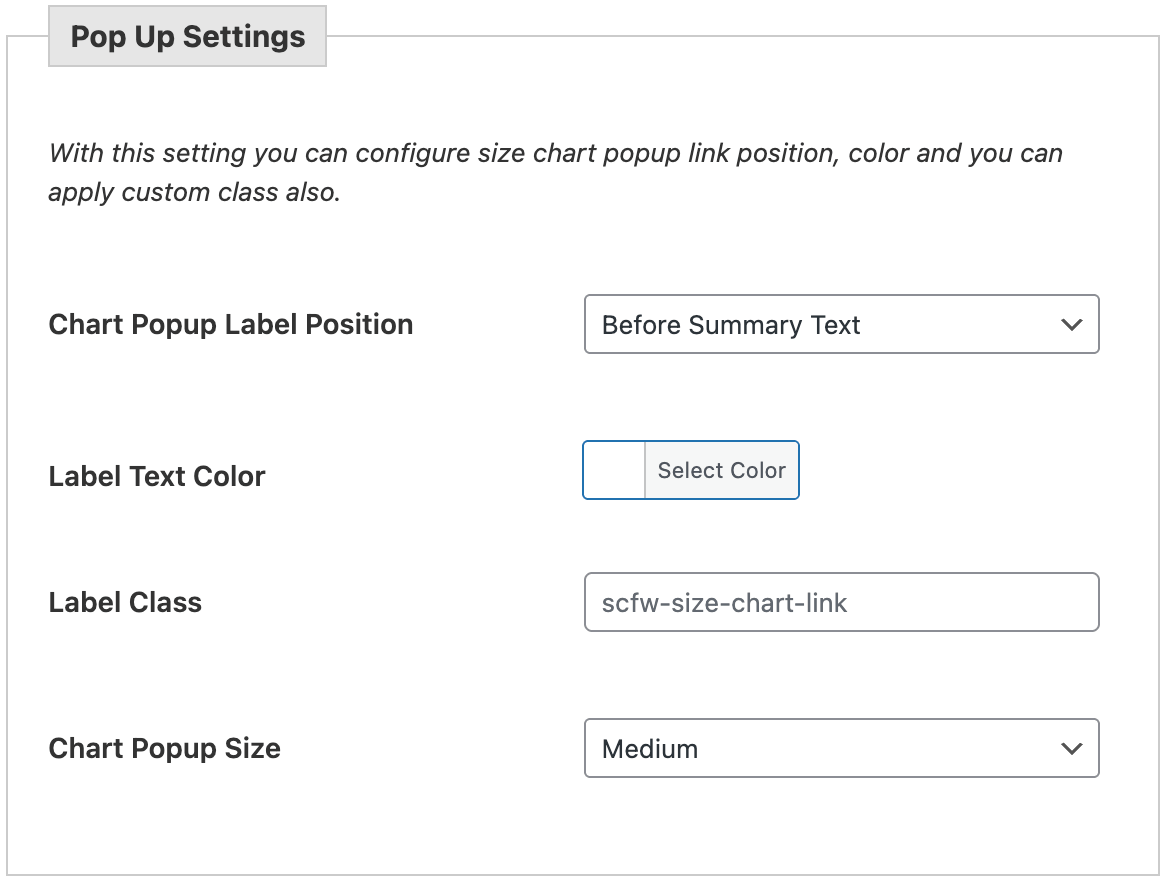

Configure Pop-Up Settings

Use this section to customize how the size chart pop-up link appears on the product page.

Available Options:

1. Popup Link Position

Choose where the link appears, such as:

• Before the Add to Cart button
• After the Add to Cart button
• Below product summary
• Custom position via class

2. Popup Link Color

• Set the text color
• Set the hover color

3. Custom Label CSS Class

You can add a custom class to style the pop-up link using your theme or custom CSS.

This helps match the size chart link with your brand design.

4. Chart Popup Size

Set the size chart popup width to small, medium, or large.

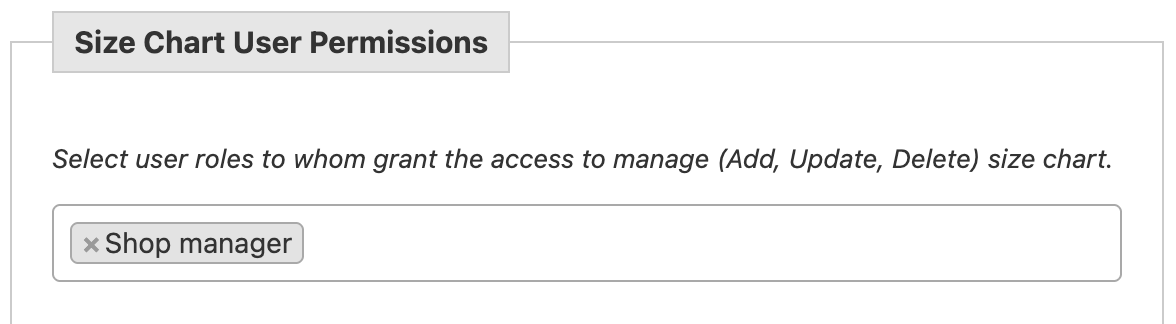

Manage Size Chart User Permissions

You can control who has permission to add, edit, update, or delete size charts.

Select User Roles:

You can grant access to roles such as:

• Administrator
• Shop Manager
• Editor
• Author
• Custom user roles

Only selected roles will be allowed to manage size charts in the backend.

This is especially helpful for stores with multiple team members.

Conclusion

The Size Chart Global Settings page helps you keep your size charts consistent, professionally styled, and correctly permissioned.

By configuring global styles, default labels, popup behaviors, and user access roles, you ensure that every product size chart aligns with your brand and works smoothly across your WooCommerce store.

FAQs

1. Do global settings apply to all size charts automatically?

Yes. However, styling changes apply only when the chart uses Custom Style.

2. Can I override global settings for individual size charts?

Yes, each chart has its own local settings.

3. What happens if I don’t set a global label?

The plugin uses the default system label: “Size Chart”.

4. Can I change the pop-up link color for specific products only?

Yes, using custom CSS classes applied per chart.

5. If I disable a user role, what happens?

Those users cannot add, edit, or delete charts.
